Industrial Glass Equipments » Structure & Supports » Structure Tubes, Galvanised

Structure Tubes, Galvanised

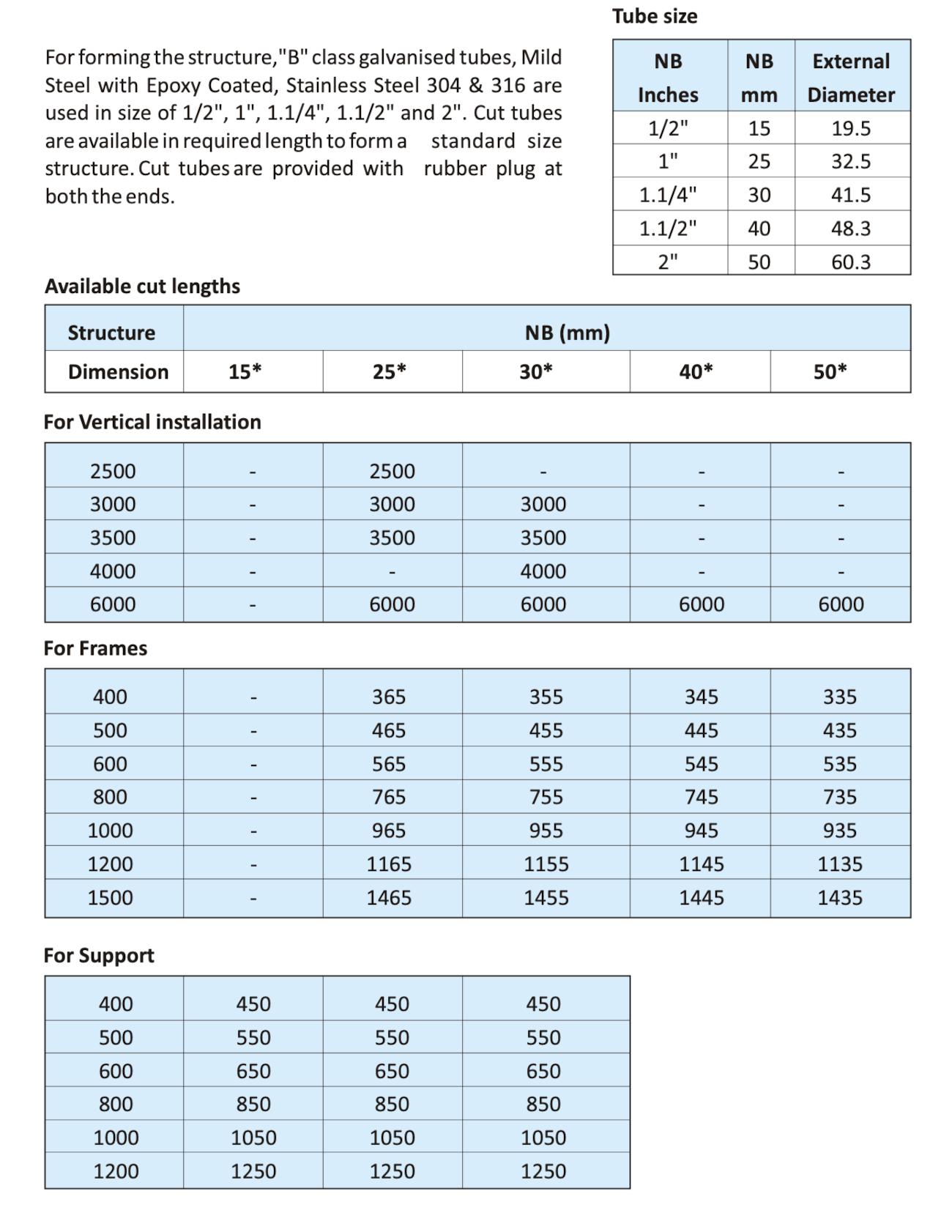

For forming the structure “B” class galvanised tubes are used in size of ½”,1”, 1¼”, 1½”, and 2. Cut tubes are available in required length to form a standard size structure. Cut tubes are provided with rubber plug at both the ends.

Tubes size
NB Inches
NB mm
External Diameter
½”
15
19.5
1”
25
32.5
1¼”
30
41.5
1½”
40
48.3
2”
50
60.3

Available cut lengths



Structure Dimension
NB (mm)
15*
25*
30*
40*
50*
For Vertical installation
2500
-
2500
-
-
-
3000
-
3000
3000
-
-
3500
-
3500
3500
-
-
4000
-
-
4000
-
-
6000
-
6000
6000
6000
6000
For Frames
400
-
365
355
345
335
500
-
465
455
445
435
600
-
565
555
545

535





800
-
765
755
745
735
1000
-
965
955
945
935
1200
-
1165
1155
1145
1135
1500
-
1465
1455
1445
1435
For Supports
400
435
435
445
455
465
500
535
535
545
555
565
600
635
635
645
655

665





800
835
835
845
855
865
1000
1035
1035
1045
1055
1065
1200
1235
1235
1245
1255
1265
1500
1535
1535
1545
1555
1565

Cat. Ref.                  TBG (NBmm/Cut length)
for e.g.                     TBG 25/365.
